CCS, BV, ABS Approved 300-2400m3/h Stainless Steel FiFi System Fire
Monitor
Product Introduction

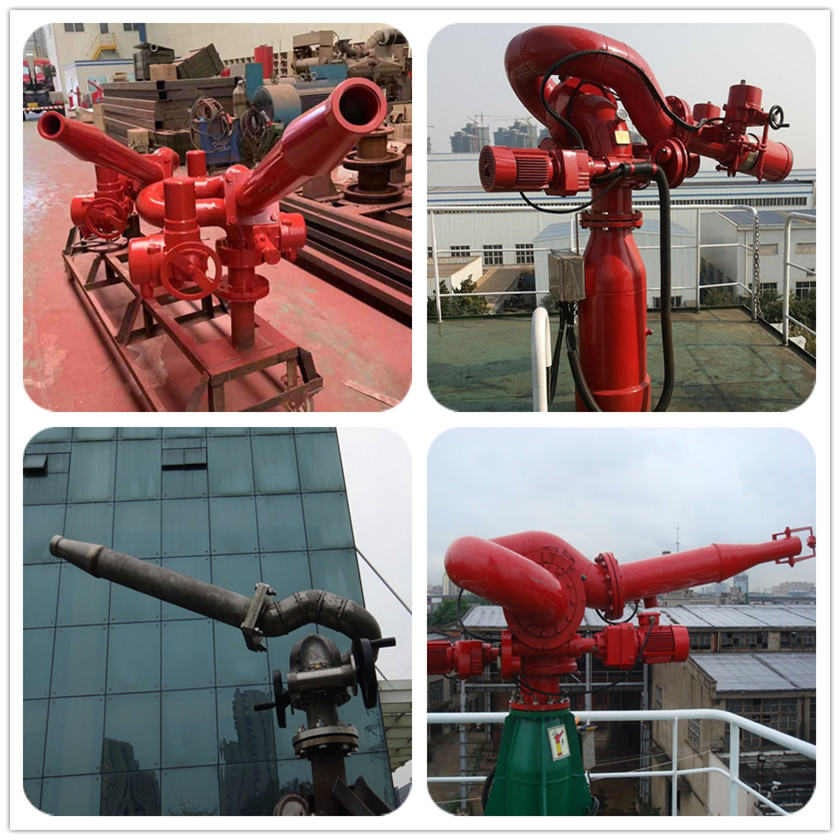

300-2400m3/h Stainless Steel FiFi System Fire Monitor can be manual
operation, hydraulic driven and electric driven. It has become one
of the few equipment which can effectively perform fire fighting
operations, also it can be used for anti-riot too. Water monitors
can perform continuous large-flow long-range operations at the fire
scene. With the large flow, it has better performance compare to
the fire extinguisher for some fires and keeps a long time high
efficient working status with a continuous water resource. With the
good reliability, it is very popular and accepted by the clients
world wide.
Main Features
1. With special nozzle head, Fire Water Monitor can spray water fog
and also water columns .
2. Remote control make automatic fire water monitor more Flexible,
convenient and easy to operate .
3. Water monitor fire fighting is Safe, efficient, high reliability
and large working area .
4. It can be applied in the fire of oil and also solid combustible
.
300-2400m3/h Stainless Steel FiFi System Fire Monitor is fixed
installed in fire-prone areas to prevent fires. It is widely used
in refineries, oil fields, oil depots, storage tank areas, chemical
plants, chemical warehouses, petrochemical storage and
transportation, LNG / LPG and other flammable and explosive
petrochemical companies, oil and gas dangerous chemical terminals,
power plants, coal chemical industry, machinery And other important
places. With the stable performance, flexible operation, long
throwing distance, light weight and compact structure, it can keep
the firefighters far away from the fire to protect their personal
safety well.
1. High flowing capacity and long spraying distance to extinguish
fire quickly .
2. Compact type is more Flexible, convenient and easy to operate .
3. 316 stainless steel and 304 stainless steel material fire water
monitor is optional .
4. With third party approval CCS Certification, ensure it’s in high
quality.
300-2400m3/h Stainless Steel FiFi System Fire Monitor is widely
used for fire fighting, especially the large flow rate water
monitors, the strong recoil is very dangerous for the firefighters,
it can protect the fire man well with remote controller. With
different nozzle, it can throw the water in jet and fog type for
different requirements during fire fighting. The best material for
fresh water is stainless steel 304 and for sea water is stainless
steel 316L. With the horizontal rotation and vertical pitch angel
adjustment, it can cover very large area at a fixed position.
Product Parameters
| Flow capacity | 50~2400m3/h |
Rated working pressure ( M Pa) | 1.2~16bar max |
| Max range (≥M) | 90 |
| Max spray angle (°) | 110 |
| Pitch angle (°) | -70～+70 |
| Horizontal swing angle (°) | 360 |
| Power source | 380V/220V |
| Wireless remote range (m) | ≥150 |
| Wired control distance (m) | ≥200m |
