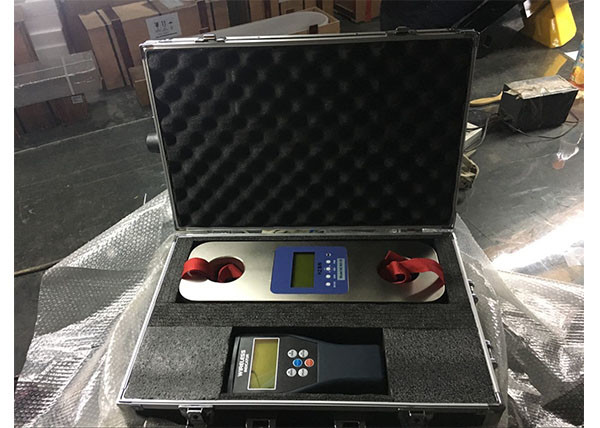

The wireless dynamometer load cell independently innovates and uses new products for industrial force measurement according to the requirements of foreign customers. It has high precision and is equipped with wireless instruments independently developed by our company. , the peak of the ability to capture, with control. It is an ideal force measuring product in the field of industrial hanging.

• Strong construction with a new one-piece sensor design. The safety factor is up to 4 times.
• Professional waterproof design, level up to IP66
• Product software has two weight control points for safety alarm and product weight control
• Measurement accuracy reaches 0.05% in the range of 1-50t, 0.1% above 50t.
• All functions and units are clearly displayed on the LCD with white backlight.
• The low-power consumption design ensures that the fully charged 18650 lithium battery can operate for more than 100 hours continuously.
• Unit option: KG, T, LB, N, KN
• Parameter setting and dynamometer calibration are completed by wireless instrument 800D, which is convenient and easy to manage.
• Wireless indicator functions: “Zero”, “Tare”, “Peak Hold”, “Accumulate”, “Cumulative Query”, “Accumulate Clear”, “Unit Switch”, “Voltage Query”, “Off”

  Standard	GB/T11883-2002
  Display	Word height 25mm 5 bit LCD screen with backlight
  Waterproof	IP66
  Initial zero range	20% Max. Range
  Manual Zero Range	4% Max. Range
  Peeling Range	100% Max. Range
  Reading stabilization time	≤5s
  Overload alarm value	Max. Range+9e
  Safety Load	125% Max. Range
  Limit Load	400% Max. Range
  Continuous Operating Time	≥90h
  Battery	1*18650mAh Lithium Battery
  Indicator Battery	1*18650mAh Lithium Battery
  Working Ambient Temp.	-10℃～＋40℃(14°F ~ 104°F)
  Working Humidity Range	≤85% at 20℃
  Wireless Distance	100m no block
  Wireless Frequency	433MHz

  Model	Max. Load (kg)	Min. Load (kg)	Graduation value (kg)	Graduation number (n)
  HZ-W8-01 (1T)	1000	10	0.5	2000
  HZ-W8-02(2T)	2000	20	1	2000
  HZ-W8-03(3T)	3000	20	1	3000
  HZ-W8-05(5T)	5000	40	2	3000
  HZ-W8-10(10T)	10000	100	5	2000
  HZ-W8-20(20T)	20000	200	10	2000
  HZ-W8-30(30T)	30000	200	10	3000
  HZ-W8-35 (35T)	35000	200	10	3000
  HZ-W8-50(50T)	50000	400	20	2500
  HZ-W8-100(100T)	100000	1000	50	2000
  HZ-W8-120(120T)	120000	1000	50	2000
  HZ-W8-200(200T)	200000	2000	100	2000
  HZ-W8-300(300T)	300000	2000	100	3000
  HZ-W8-500(500T)	500000	4000	500	3000
